Hollow Paddle Dryer

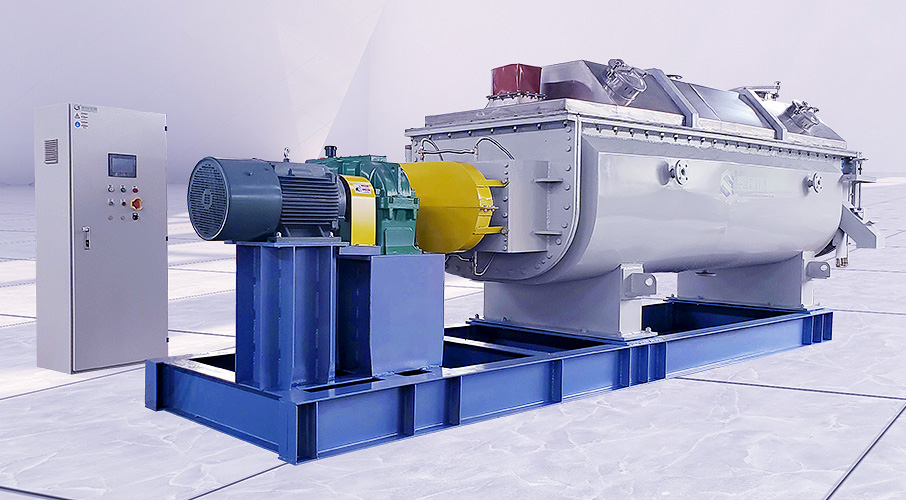

Hollow Blade Dryer

Hollow Paddle Dryer is a continuous indirect heating device for drying (cooling) materials, such as dried sludge from sewage dewatering machine( take sludge screw press for example)

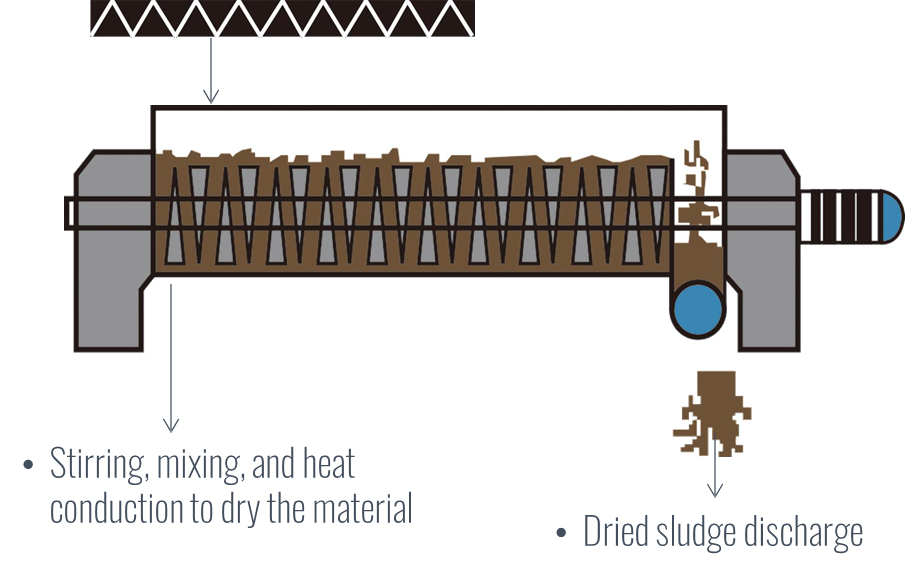

Working Principle

Hollow Paddle Dryer is a continuous indirect heating device for drying (cooling) materials
There are two parallel rotary shafts inlaid with interlaced paddles in the jacket shell
Each shaft is inlaid with hollow fan-shaped paddles staggered at a certain interval, and the shaft rotates at a low speed
The heat medium enters the hollow rotary shaft and paddle through the rotary joint installed at the end of the rotary shaft
After heat transfer and drying, it is discharged out of the machine through the rotary joint
Heat medium will also be introduced into the jacket

Technical Process

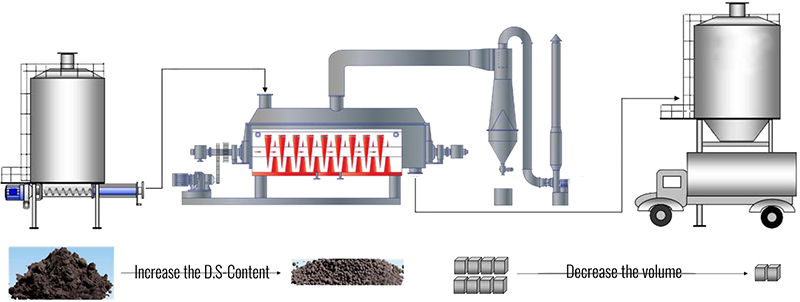

Hollow Paddle workflow

Hollow Paddle Dryer Structure and Main parts BOM

Hollow Paddle Dryer Structure

Application

Hollow Paddle Dryer Applications

On-site Case

Hollow Paddle Dryer Projects Accomplished

Model Selection Table

Model No.	KJG-20	KJG-30	KJG-40	KJG-50
Heat transfer area (㎡)	20	30	40	50
Effective volume (㎡)	1.5	3.5	5	7
Rotation Speed (rpm)	15-23	10-15	10-15	10-15
Power (kw)	11	22	30	37
Total Length (mm)	5423	7220	6682	7250
Total Width (mm)	1218	1450	2075	2030
Total Height (mm)	1650	2190	2376	2548
Vessel Length (mm)	3000	4000	4000	4500
Vessel Width (mm)	850	1100	1276	1400
Center Height (mm)	980	1000	950	1050
Distance of material inlet & outlet(mm)	2550	3800	4420	4950
Air Inlet (N	1	1.2	1.2	1.5
Water Inlet O	1	1.2	1.2	1.5

Model No.	KJG-60	KJG-70	KJG-80	KJG-100
Heat transfer area (㎡)	60	70	80	100
Effective volume (㎡)	8.5	10	12	15
Rotation Speed (rpm)	10-15	10-15	10-15	10-15
Power (kw)	37	45	55	55
Total Length (mm)	7800	8050	9000	9800
Total Width (mm)	2030	2424	2000	2500
Total Height (mm)	2677	2700	2700	2800
Vessel Length (mm)	5500	5000	5500	6000
Vessel Width (mm)	1516	1650	1650	1822
Center Height (mm)	1200	1350	1350	1400
Distance of material inlet & outlet(mm)	5000	4500	5000	5500
Air Inlet (N	1.5	1.5	2	2
Water Inlet O	1.5	1.5	2	2

Model No.	KJG-120	KJG-160	KJG-200	KJG-220
Heat transfer area (㎡)	120	160	200	220
Effective volume (㎡)	18	23	32	34
Rotation Speed (rpm)	10-15	6-12	6-12	6-12
Power (kw)	75	110	110	132
Total Length (mm)	10560	12000	12050	12500
Total Width (mm)	2650	2950	3300	3300
Total Height (mm)	3050	3300	3700	3700
Vessel Length (mm)	6000	7000	7000	7440
Vessel Width (mm)	1978	2324	2450	2450
Center Height (mm)	1325	1350	1525	1400
Distance of material inlet & outlet(mm)	5500	6500	6500	7000
Air Inlet (N	2	2	2	2
Water Inlet O	2	2	2	2
